ActiveTarget® 2 XL is the world’s clearest and most complete live sonar. Surface-to-surface 180° live views leave nothing unseen, while best-in-class resolution shows fish, structure, and your lure in unrivalled detail. It’s even easier to use, with the ability to switch instantly between Forward and Down views on your display. The final touch? Double-up with two XL systems for an industry-first Scout Live 360° view all around your boat*. *Dual sonar and transducers required, HDS PRO only.
Connectivity
Ethernet Ports Yes: 1 - 100 Mbit Ethernet Port
Electrical
Power Consumption max 2.2A @ 10.8VDC
Power Consumption typical 1.5A @ 13.8VDC
Recommended Fuse Rating 5A
Supply Voltage 10.8 VDC - 31.2 VDC
Environment
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range Module: 5°F to 131°F (-15°C to 55°C )Transducer: 32°F to 95°F (0°C to 35°C)
Shock Vibration 100,000 cycles of 20 G
Storage Temperature Range -22°F to 158°F (-30°C to 70°C)
Waterproofrating IP67
Physical
Dimensions W x H x D Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)Transducer: 7.08" (179.9mm) x 4.47" (113.6mm) x 2.68" (68mm)
Mounting Type Module: Surface MountTransducer: Bracket Mount
Warranty Period 2 years + 3 years of in service repairs or upgrades
Know where to cast
Catching fish is easier when you can see them interacting with structure and responding to your lure – in real time – with Lowrance® ActiveTarget® 2 XL Live Sonar.
Get an even better picture
See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget® 2 XL Live Sonar.
Clear in all conditions
Optimized image and stabilization settings deliver crisp and clear live action views of fish and structure, even in rough conditions.
Fewer adjustments
Get even more benefits when you combine two ActiveTarget 2 XL systems. With the ability to track Forward XL or Down XL and Scout XL views simultaneously, there’s no need to raise your trolling motor to adjust the transducer.
Easy to use
Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.
Know whether fish are active
It’s easy. Drop your lure on a fish and watch the catch unfold in real time – from the fish striking your lure to reeling the fish to the surface – you'll see it all in incredible detail.
See the smoothest picture
Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 XL shows you exactly what’s going on under the surface as a live action feed.
Increased detail
Enhancements to the beams broadcast from the ActiveTarget® 2 XL system make it possible to show more detailed images further from the boat than ever before.
See all around the boat
Track fish and your lure presentation with high-resolution views in front, below and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.
360 Scout XL Live View*
Add a second system and enable 360° Socut XL live view around your entire boat*. Using multiple transducers also reduces need to lift your trolling motor at all, simply have one set to Forward XL/Down XL and one set to Scout XL.
*Two transducers and two modules required. HDS Pro only.
Easy Upgrade

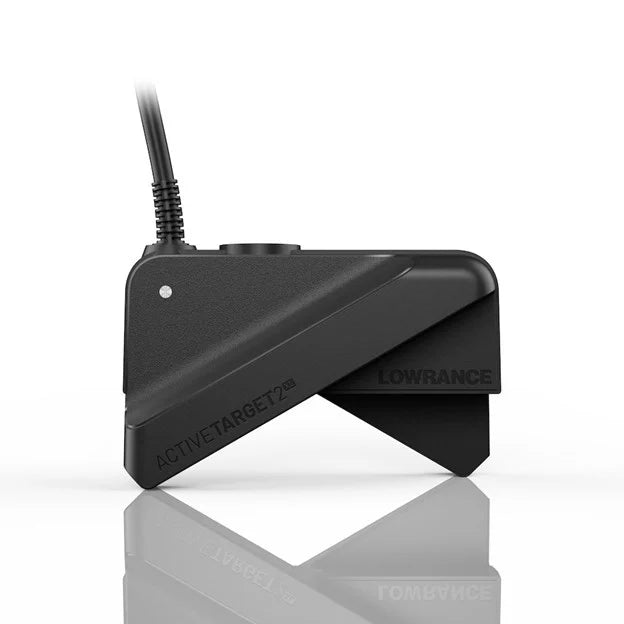

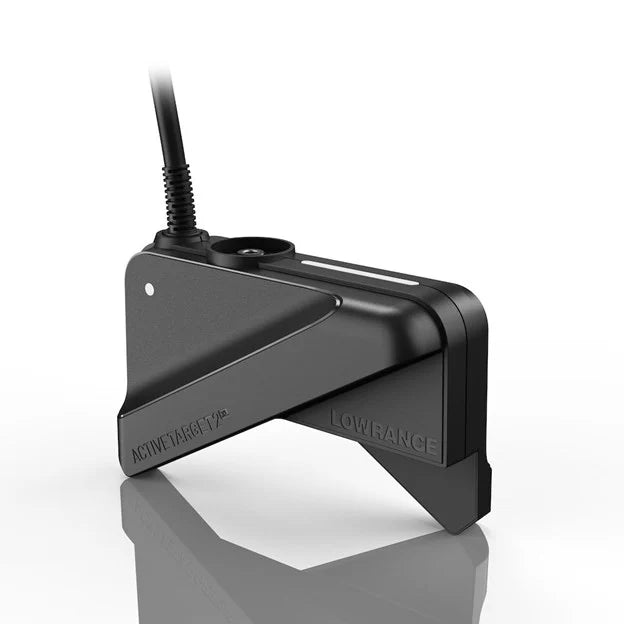

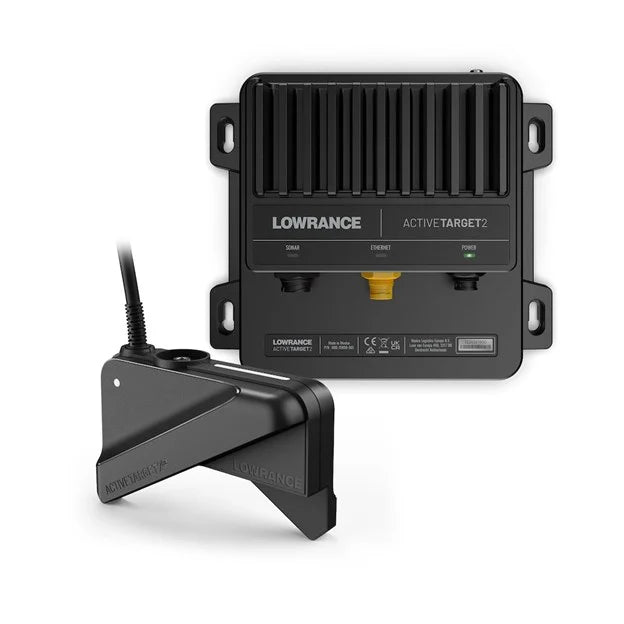

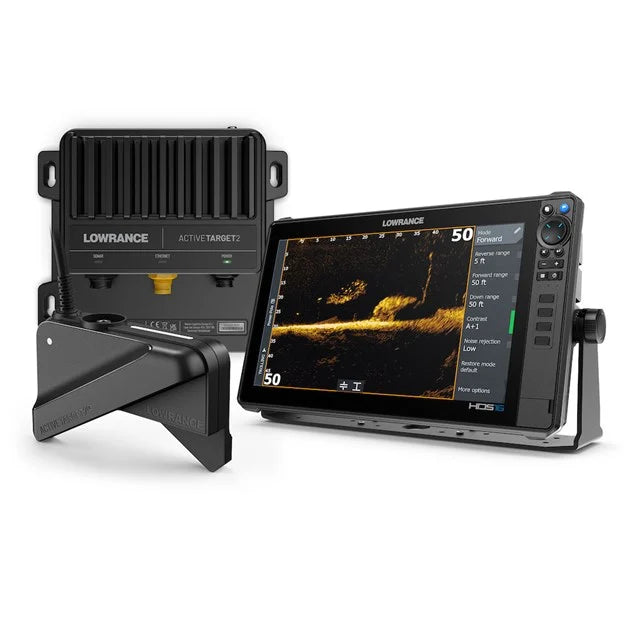

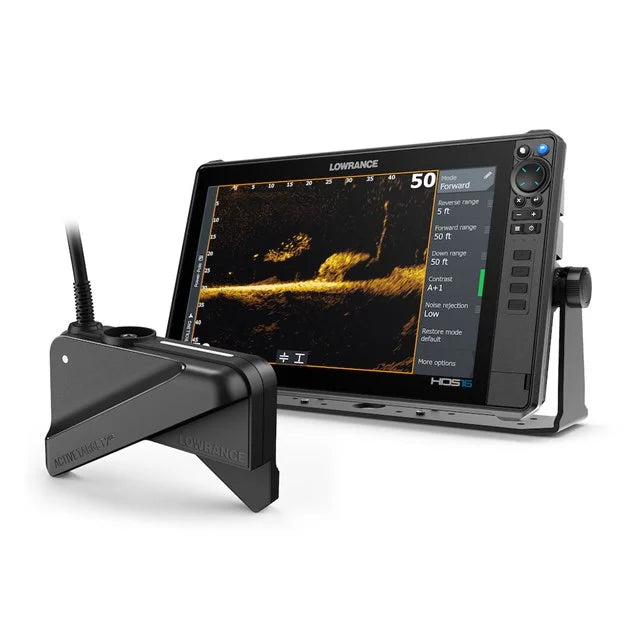

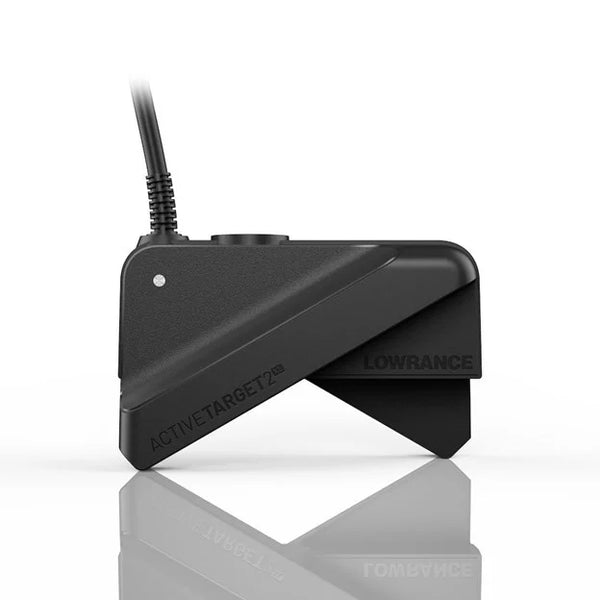

ActiveTarget 2 XL is a one and done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast. It’s also compatible with a wide range of Lowrance displays, including HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS®.
